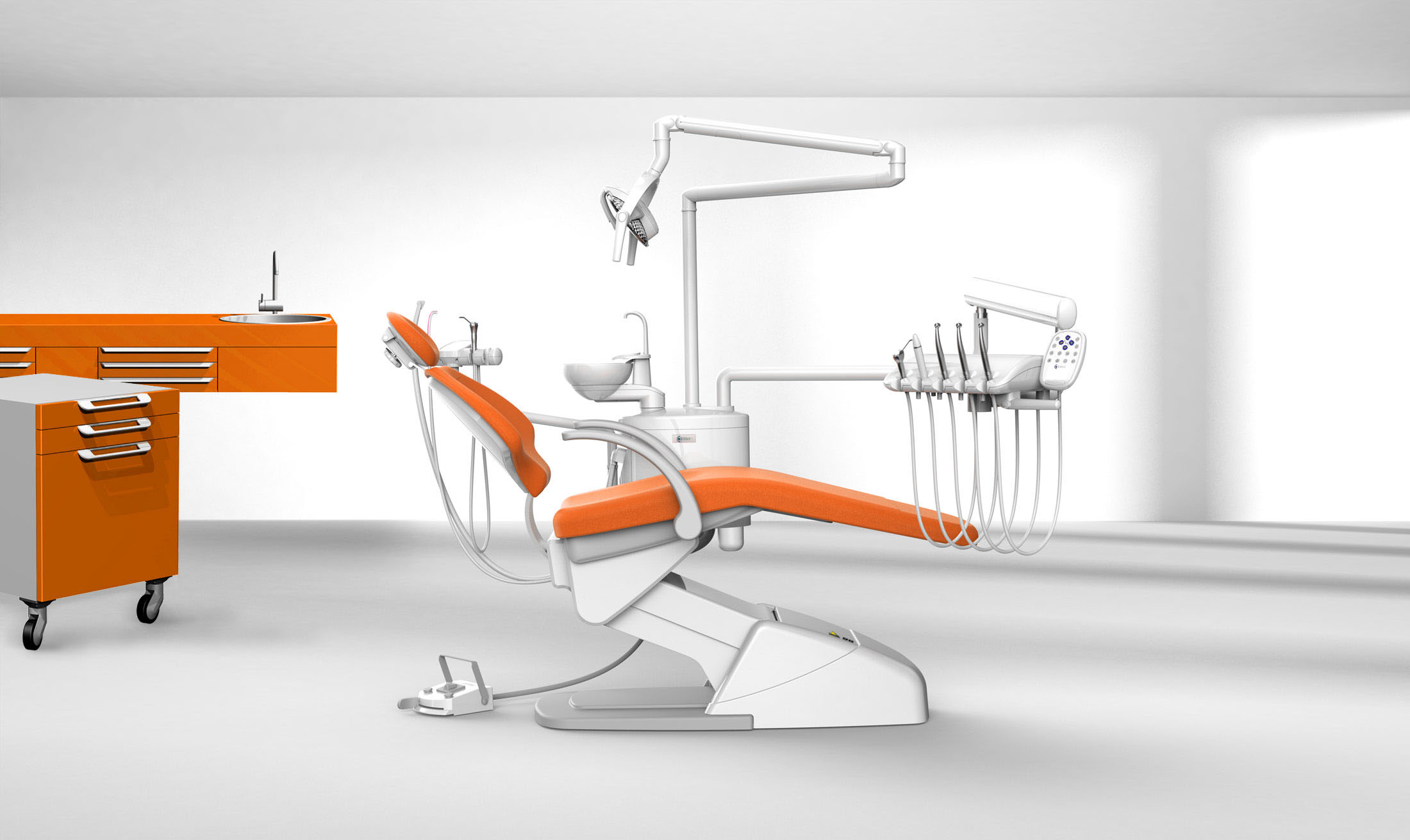

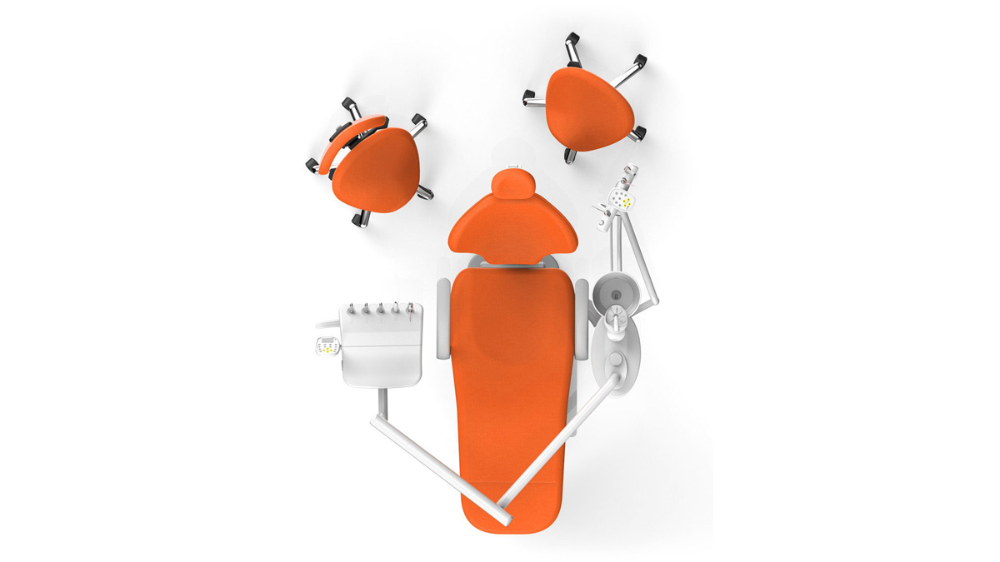

Ultimate Comfort Smart

Comfort and Quality
The patient chair is synchronized and electric driven.
An ergonomic chair hight guarantees easy access. The water
unit has a self-contained clean water system. The multifunctional foot pedal control system is easy to use and supports an
excellent workflow.
The unit has a memory-system:
- spittoon position
- last position
- light off / light on
- instrument water on/off
The Ultimate Comfort Smart is outstandingly
ergonomic and efficient for the daily use.

Patient chair

• · Electric chair movementfor fast and quiet movements
• · Ergonomic design for comfortable seatingalso during long treatments
• · Broad space for dentist‘s legs
• · High-quality leather upholstery
• · 4 programmable chair positions, plus last position and exit position
• · Auto return function :If the safety switch is activated, the chair
• automatically moves up for a few cms
• · Safety switches
• · Trendelenburg movement:Seat and backrest movement synchronized
• · Fixed left and movable right armrest
• · Double-articulated headrest

Dentist elements
Easy handling and efficient treatments: According to the personal preference,
two different versions are available, which allow an easy adjustment of the instruments.
The controls for the instruments are electric driven.

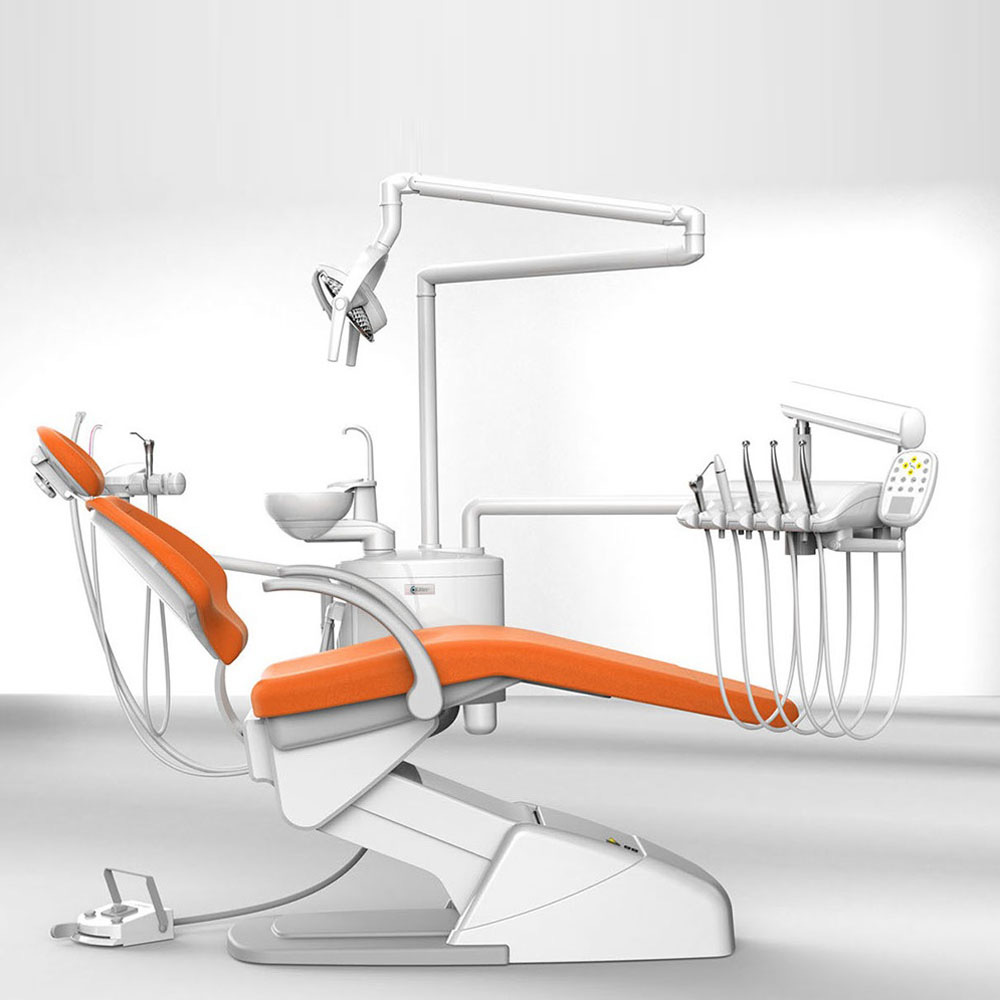

„H“ Versionwith hanging hoses

• · Traytable available
• · Pneumatic arm brake mechanism
• · Up to 5 instruments
• · 4 programmable patient chairpositions, plus last position and exit position
• · Optical sensors in instrumentholders
• · Optional: tray on top or lower tray

Control panel

• · Touchpanels with x-ray viewer
• · 4 programmable patient chairpositions, plus last positionand exit position
• · Removable silicon pad for easycleaning and disinfection (S-Version)

Operating light
Illumination where it is needed:
The Ritter LED CoolLite operating light

• · 3.000 - 35.000 lx
• · Shadow-reducing effect
• · Removeable, sterilizable handles
• · Realistic color match
• · Colour temperature 5.000 K SMART ILLUMINATION

„S“ Version
with swinging hoses

• · Traytable available
• · Pneumatic arm brake mechanism
• · Up to 5 instruments
• · 4 programmable patient chair
• positions, plus last position and exit position · Optional lower tray

Venturi Suction System

External Central Suction
External suction with place selection valve.
A suction machine is required for operation

Assistant element
Flexibility for maximum efficiency

• · Integrated touch panel
• · Up to 4 instruments
• · Large and small suction hose
• · Assistant syringe
• · Curing light

Foot controller
Modern design for chair movement and
instruments:
• Large foot lever for easy repositioning
• Manual control of chair movements
• Up/down of backrest and chair
Program control of chair movements:
• Spitting position/last treatment position
• Free programmable chair positions
• Entry / Exit position
Control of instruments:
• Speed/power control for activated instrument
• Individual water on/off mode for each instrument line
Buttons:
• Spray water at instrument
• Chip blower function

Stool

• · Backrest with fixed position or dynamic movement
• · Ergonomic and comfortable seating
• · Symmetrical backrest
• · Gas lift cylinder
• · Chrome legs
• · Five dual castors for stability
• · Colour-matching upholstery availablein multiple colours
• · Available with or without footring
