Flexible positioning and optimized usage of space in
operating theaters and intensive care units

The idea of routing equipment and medical gases required for
the treatment of patients through swivel-mounted ceiling mounts
has long been established in practice. Flexible positioning and
optimized use of space in operating theaters and intensive care
units but also the ability to meet hygiene requirements and safety
concerns all make this the perfect solution. The clear assignment of equipment, elimination of tripping hazards posed by
cables and supply lines but particularly unrestricted mobility
for all components in the room all speak in favor of this concept.

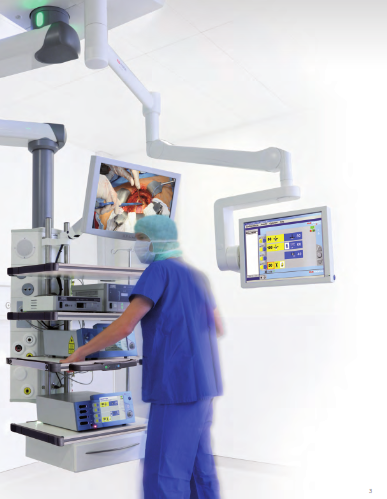

KLS Martin ceiling mounts are used in surgery, endoscopy, anesthesia, intensive care, or as monitor mounts. We offer tailor-made solutions for all load classes for weights ranging from 30 kg to 1000 kg.a

independant® Ceiling Mounts
E-brake
Safe and fl exible in an emergency
E-Brake, the innovative electromagnetic passive
brake, holds the system safely in position even in
the event of power failure. At the same time, the
E-Brake is designed to allow manual repositioning
at all times.
4
The new generation of independant® ceiling mounts has been repackaged with a completely new design. The modular layout of the supply units for electrical and gas modules, trays, drawers and infusion poles makes a huge contribution to reducing clutter in
operating theaters and intensive care units. The overall unit is made up of the following
basic components.
The base is the load-bearing basic component and can be confi gured in fi ve lengths to
suit requirements. Gas, electrical, or data modules can be attached to the side of the
base with their mounts positioned at the front or rear as required. This declutters the
working environment for staff and makes it easier to operate equipment. Care has been
taken to provide a high integration density of power outlets, data ports, gas connections,
and pressure gauges for each module. The resulting reduction in volume provides noticeably more space in the working environment. All modules can be attached to the left
or right-hand side of the base as required. Individual design preferences can thus already be taken into account in the planning phase.

The systems at a glance
The supply unit can be combined with the following mounting systems:

independant® 101
Swivel mount with vertically adjustable spring arm with a load-bearing capacity of up to 180 kg
or a motorized arm with a load-bearing capacity of up to 150 kg. Safe positioning with the option
of electromagnetic or pneumatic brakes.

independant® 201
Motorized, height-adjustable swivel mount for load-bearing capacities of up to 250 kg. Large line
apertures for medical gases, electric cables, and data cables. Safe positioning using electromagnetic
or pneumatic brakes.

independant® 301
Universal heavy-duty mounting system up to 640 kg for surgery/endoscopy/anesthesia/intensive care.
Available with either one or two-armed extension, featuring a large swivel angle. High positioning
accuracy due to pneumatic brakes.

independant® 401
Stands out from the crowd – not only thanks to its user-friendly design with no external screw fi xtures.
The mounting system has a load capacity of up to 640 kg and a whole lot more: the wear-free, electromagnetic braking system is color-coded and available with optional LED lighting that provides visual
feedback to indicate at which bearing the brake is released. Large openings and apertures enable
smooth and fast installation of the ceiling-mounted supply unit.

independant® 501
The heavy-duty mounting system is designed for highest loads (up to 1000 kg). The mounting system
is used particularly in hybrid OTs or for lifting anesthesia machines.
